Dibbler

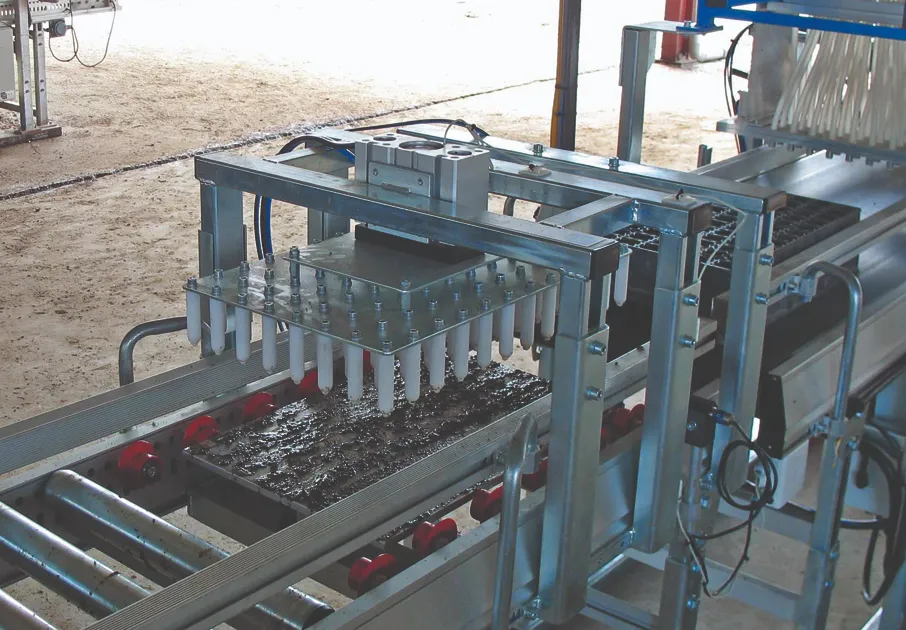

A machine with numerous cylindrical suction cups suspended from a metallic frame is positioned above a conveyor system, likely for automated handling in an industrial setting.

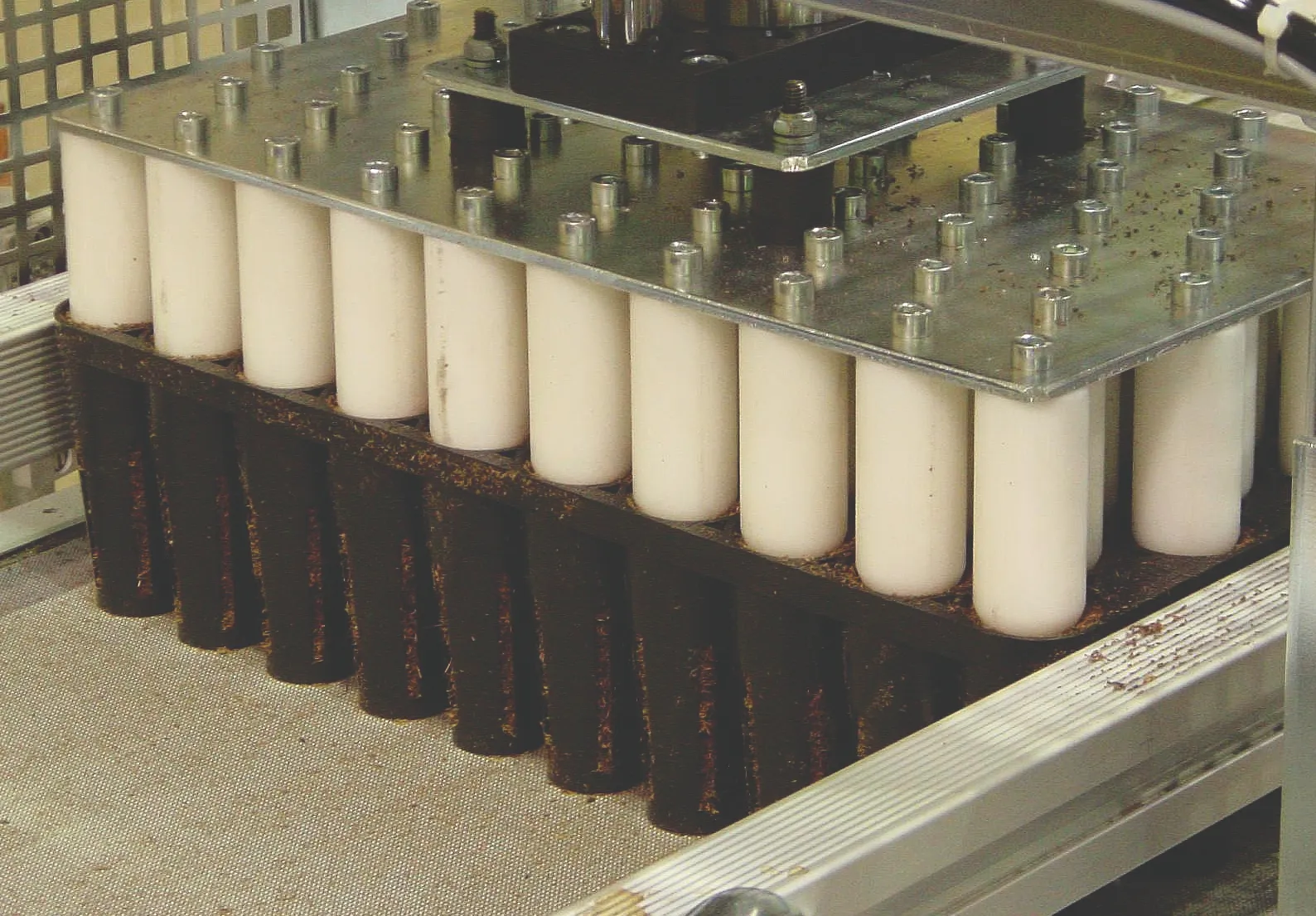

A mechanical device presses cylindrical white components into black holders within a metal framework, possibly part of an industrial or manufacturing process. The surrounding area features metal and grid structures.
A yellow industrial machine operates on a conveyor belt in a factory setting. Text includes: "BCC AB, Landskrona, Sweden, Product No: 25-140, Serial No: 2048-SS, M.T. Year: 2022."
A seeding machine is inserting soil plugs into trays using multiple nozzles, operating on a conveyor in an industrial setting.

Dibbler

  • SPECIFICATIONS
  • Dimensions mm: 600 x 700 x 1200
  • Weight: 30 kg
  • Compressed air consumption: 50litres/minute at 600kPa (6bar)
  • Maximum production capacity:
    HIKO: 20 trays/minute
    Plantek/SideSlit: 14-18 trays/minute
    Insert Frame: 10 trays/minute

Product Leaflets

Description

Seedlings require an evenly distributed and geometrically balanced root system throughout the growing substrate for eventual proper anchoring of the tree after establishment infield. To achieve this, it is necessary to place the seed in the centre of the tray cell during the sowing process. The BCC Dibbler creates a cavity in the growing substrate which ensures the seed remains in the centre of the cell after sowing.
