Precision Seeder

A mechanized industrial machine is positioned over a conveyor belt, appearing inactive. It is labeled "Plant the Planet" and surrounded by a clean, industrial indoor environment.
Seeds scatter along a moving conveyor belt, surrounded by machinery in an industrial setting. The metal rollers and trays guide the process, suggesting a sorting or packaging operation.

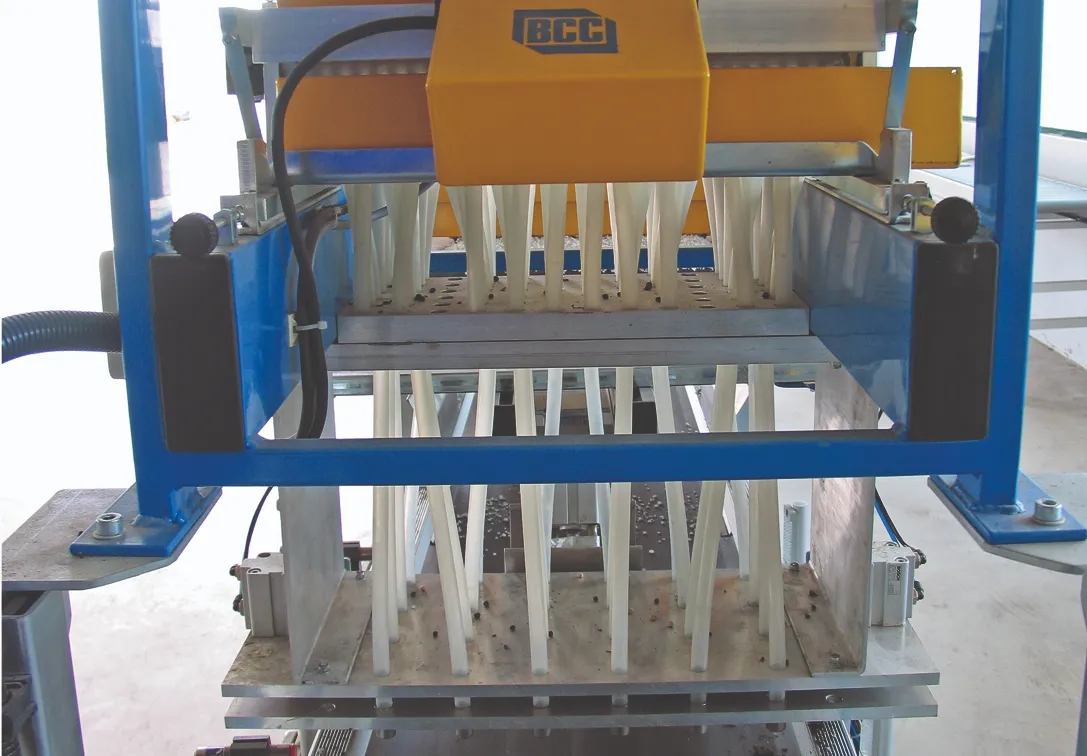

Machine with multiple vertical tubes pushing objects downward through a grid, surrounded by blue metal framework. A yellow component is marked with "BCC," in an industrial setting.

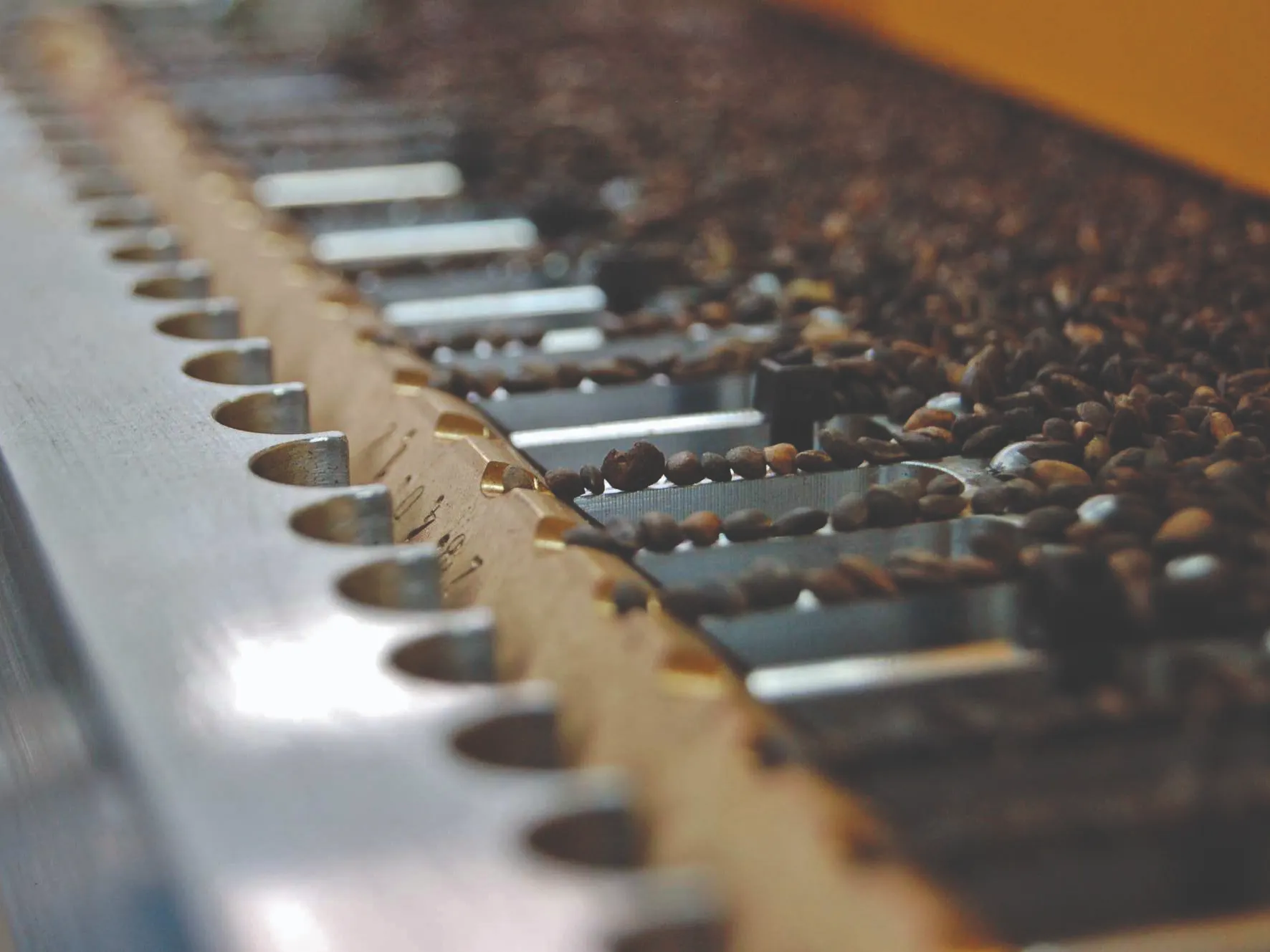

Seeds are dispersed across a metallic conveyor with grooves. In the background, more seeds are densely scattered, indicating a sorting or processing activity in an industrial setting.

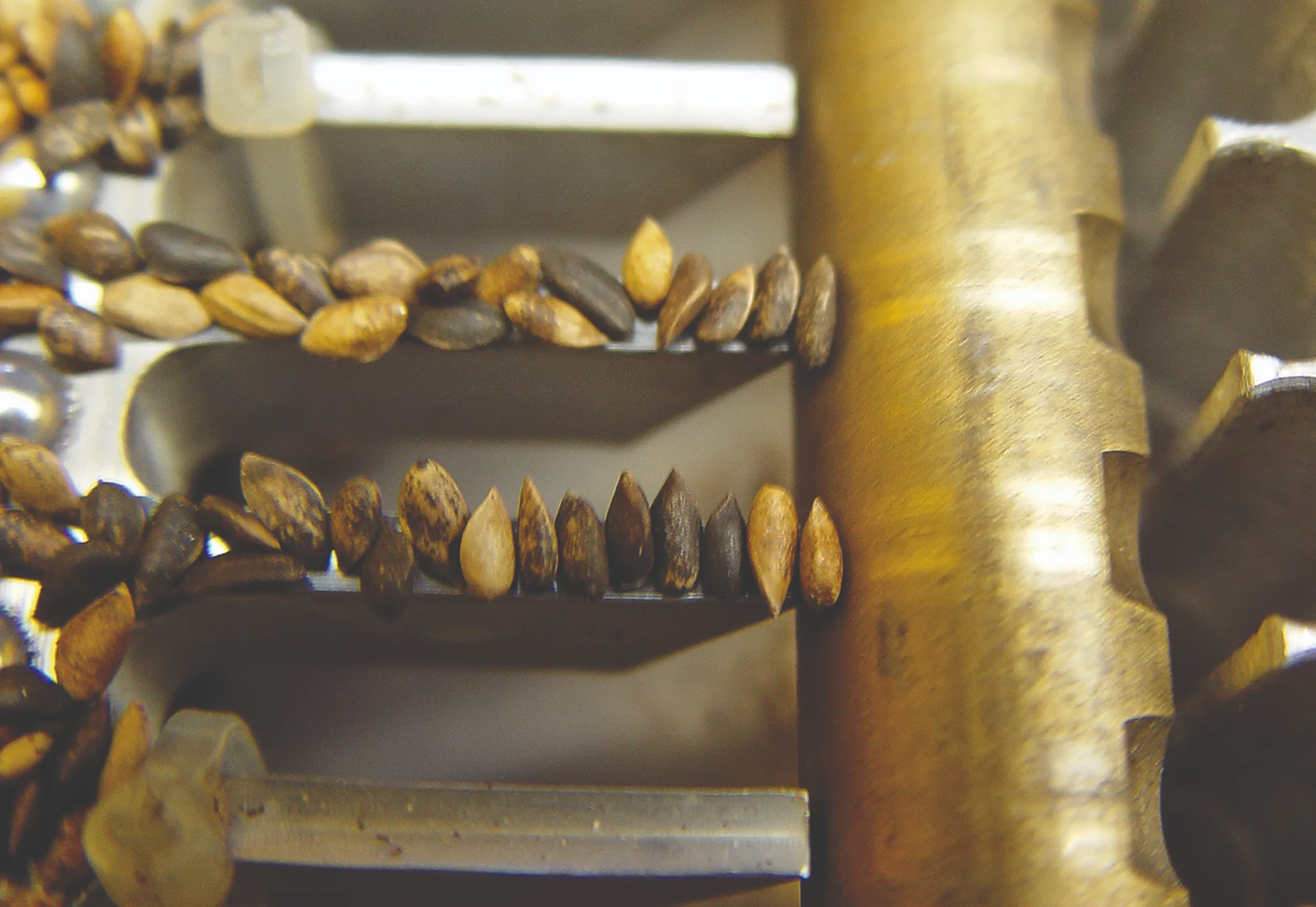

Seeds are lined up on metallic ridges, adjacent to a large, brass-colored gear. The seeds vary in shape and color, and the setup suggests a mechanism for sorting or processing them.

Precision Seeder

  • SPECIFICATIONS
  • Dimensions (L x W x H) mm: 770 x 600 x 1620 (depending on height of conveyor belt)
  • Weight: 65kg
  • Power supply: 3 x400V, 50Hz, 5Amp
  • Compressed air consumption: 100 litres/minute at 600kPa (6Bar)
  • Maximum production capacity (approx.):
    - HIKO: 20 trays/minute
    - Plantek & SideSlit: 13-18 trays/minute
    - 96 Insert Frame: 10 trays/minute

Product Leaflets

Description

The BCC Precision Seeder was developed to meet the following main criteria:

– High production capacity
– High accuracy sowing
– Handling of a variety of seed species with different sizes and shapes
– High reliability
– Low maintenance

Highest possible seeding accuracy can be achieved by the BCC Precision Seeder. Typically nurseries using the Precision Seeder reach accuracy rates of more than 95%. However, seeding accuracy of more than 98% is generally achieved with seedlots that have been sized and graded correctly prior to seeding.
