2-Row Fully Automatic Filling Machine

2-Row Fully Automatic Filling Machine

  • SPECIFICATIONS
  • Dimensions (LxWxH) mm: 6750x1870x2500
  • Weight (kg): Approx. 2000
  • Electrical Power: 3x400 V, 50/60 Hz, 16 A + 10 A
  • Compressed Air: 700l at 6 bar
  • Capacity: Up to 4000 cells/hour
  • FiberCell diameter (mm): Ø40-60mm
  • FiberCell length (mm): 50-100mm

Product Leaflets

Description

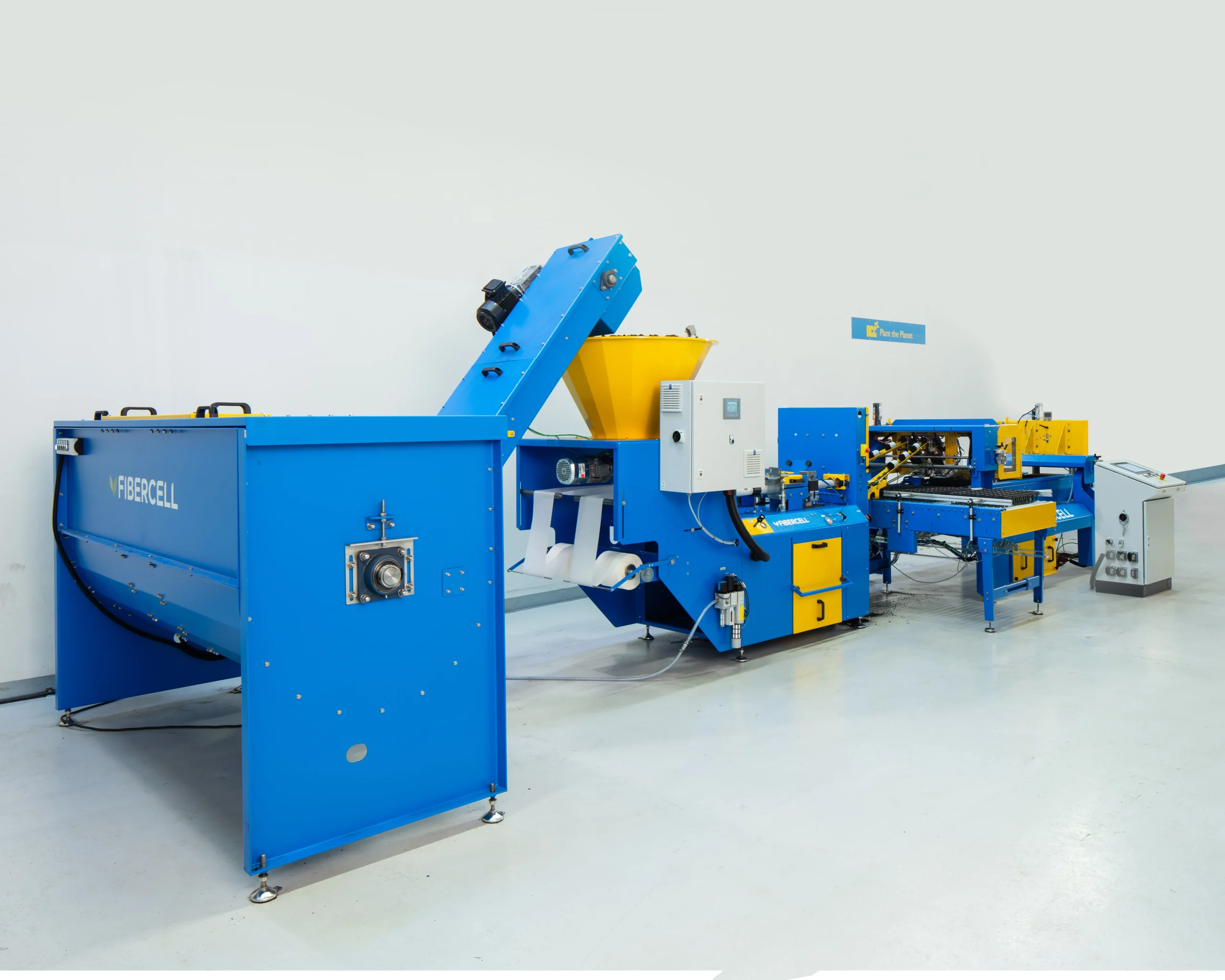

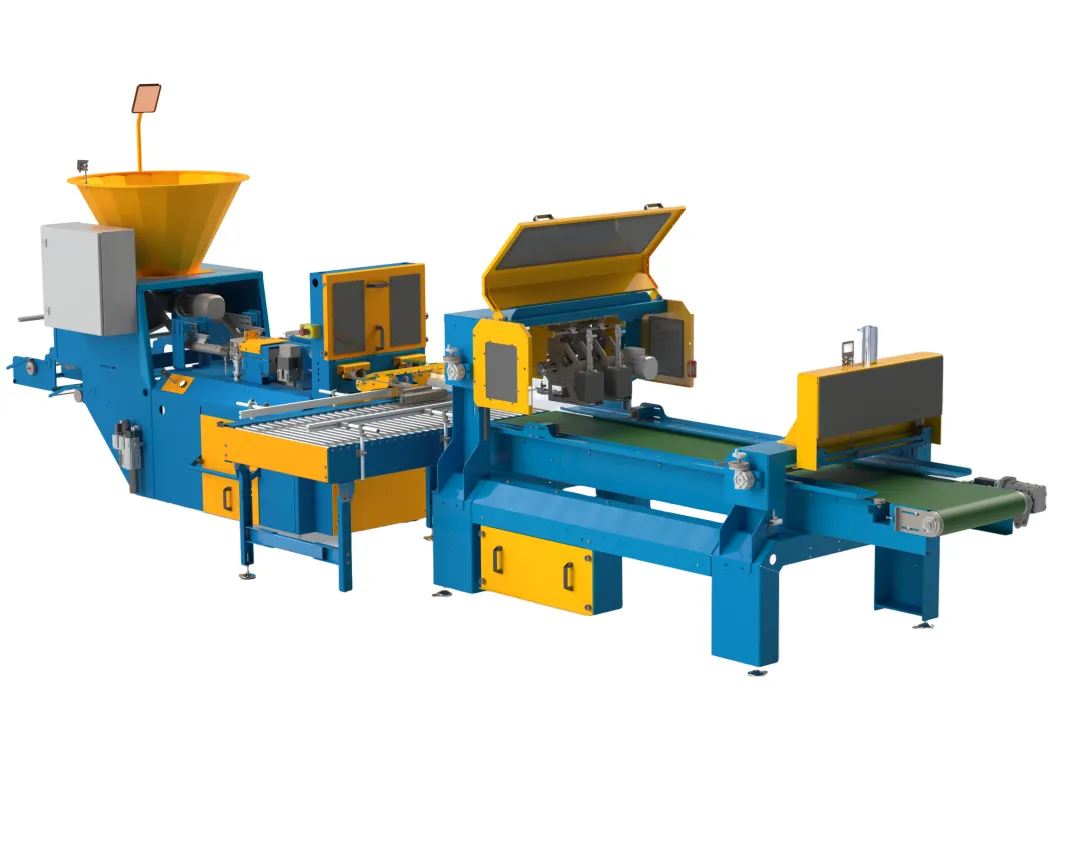

The 2-Row Fully Automatic Filling Machine is a versatile and efficient machine designed to place plugs with cell diameters ranging from 40 to 60 mm. The cell length is easily adjustable and can accommodate lengths of up to 100 mm. For added convenience, the unit can be integrated with a destacking system that automatically feeds trays into the machine, ensuring smooth operation. Additionally, it is highly adaptable to various tray types and designs.

This machine is user-friendly, easy to clean, and requires only one operator, making it an excellent solution for streamlining your production process. With the capacity to produce up to 4,000 cells per hour—depending on cell length, diameter, and substrate—it delivers exceptional performance and reliability.

The integrated spike dibbler is fully adjustable to suit different tray configurations, providing flexibility for various production requirements. It also allows operators to customize the cell placement pattern within the trays, offering maximum control and efficiency. This ensures the machine meets diverse planting and production needs with precision and ease.
