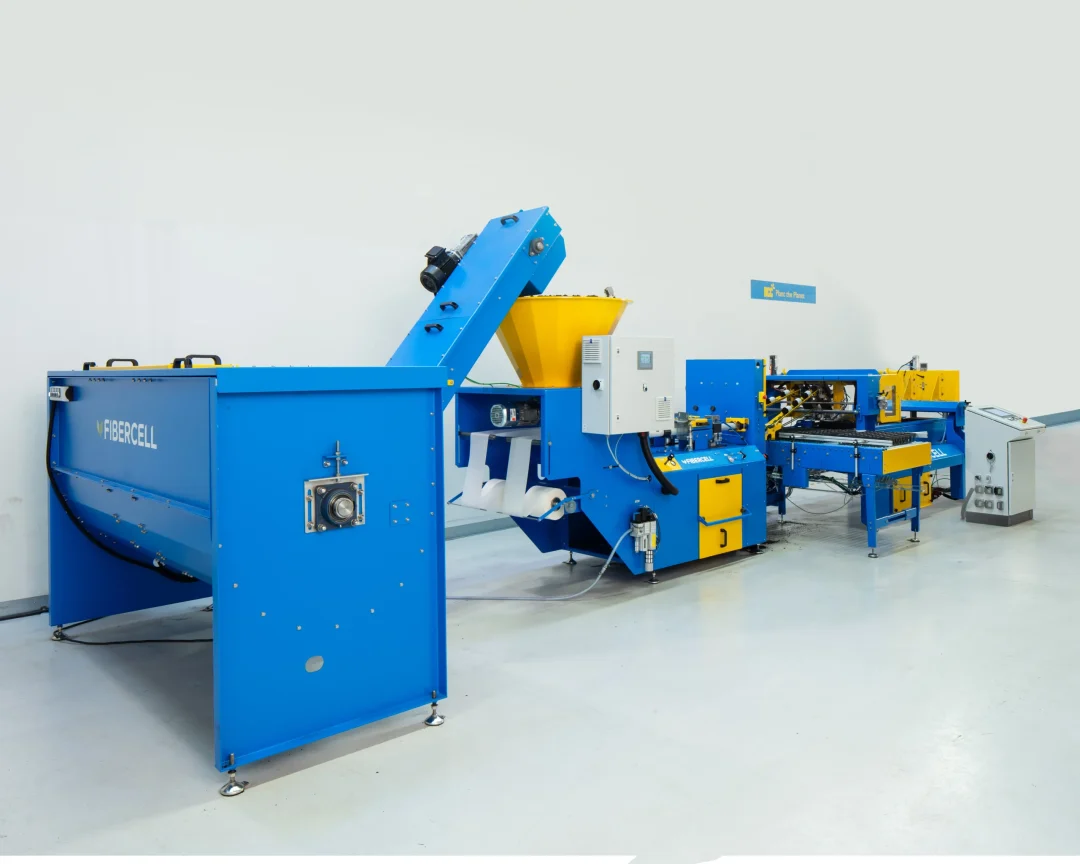

2-Row Fully Automatic FiberCell Filling Machine
- SPECIFICATIONS
- Dimensions (LxWxH) mm: 6750x1870x2500
- Weight (kg): Approx. 2000
- Electrical Power: 3x400 V, 50/60 Hz, 16 A + 10 A
- Compressed Air: 700l at 6 bar
- Capacity: Up to 4000 cells/hour
(Depending on cell length, cell diameter & substrate) - FiberCell diameter (mm): Ø45-60mm
- FiberCell length (mm): Up to 100mm
Product Leaflets
Description
We are now offering an automatic Pacing Unit for our 2-Row FiberCell Filling Machine, taking automation and efficiency to the next level. With our extensive experience in forestry nurseries and a deep understanding of their high standards for quality and uptime, we have integrated these requirements into the machine's design and functionality.
Built with a solid and durable construction, the entire line is designed for high performance and reliability, while also boasting a modern, user-friendly design. The 2-Row Fully Automatic FiberCell Filling Machine efficiently places plugs with cell diameters ranging from 45 to 60 mm and adjustable lengths up to 100 mm.
This machine performs best with a fine substrate that is free from large particles. A properly prepared growing medium is essential for uniform plug filling and successful seedling development. The 2-Row Fully Automatic Filling Machine is well suited for cultivation of tree species such as eucalyptus and acacia.
The filling machine’s substrate hopper is equipped with a level sensor that detects when more substrate is needed and sends a signal for refilling. To ensure continuous operation, we also offer various machine solutions for automatically supplying the filler with substrate.
While the machine supports various tray types, using high-quality trays will increase efficiency and reduce operational interruptions. The trays can be fed into the line from either the left or right side, either manually or via an optional buffer conveyor with an integrated Destacker.
The placing unit can be programmed to position the FiberCell plugs in different patterns within the tray. The integrated spike dibbler is fully adjustable, offering flexibility to suit different tray configurations and production needs.
Monitoring and adjustments are easily made through a user-friendly color touchscreen. If an internet connection is available on-site, the machine can also be connected for remote support.
User-friendly and easy to clean, the machine requires only one operator and produces up to 4,000 cells per hour, depending on cell size and substrate, delivering reliable, high-performance operation.
